Off Grid Solar Expert--Solarker
US R32 Off Grid ACDC mini heat pump split 24K Hybrid solar air conditioner
| Categories | USA Solar Air Conditoner |
|---|---|
| Brand | Solarker Hybrid ACDC Solar |
| Model | indoor: DGA2-ACDC-24KR2(US) outdoor: DWB3-ACDC-24KR2(US) |
| Rated Voltage | AC:208V-230V; DC:150V-380V |
| VOC of PV | ≤380V |
| ISC of PV | ≤20A |
| Rater Frequency | AC:60Hz |
| Cooling Capacity Range | 6100-25200Btu |
| Cooling Input Power | 2050W |
| EER | 11.7 |
| SEER | 20.5 |
| SEER2 | 21 |
| Heating Capacity Range | 6100-26000Btu |
| Heating Input Power | 1900W |
| COP | 12.6 |
| HSPF2 -5 | 7.9 |
| HSPF2 -4 | 10 |
| Update Time | Apr 24,2025 |
Detail Information
US R32 Off Grid ACDC mini split heat pump deye 24K Hybrid solar air conditioner
DGA2-ACDC-24KR2(US) DWB3-ACDC-24KR2(US)
Plug & Cool Vacuumed Connecting Pipe
1 Quickly connecting with stop valve
2 Brass material + copper pipe
3 Less gas leakage protection
4 No Vacuum needed when installation

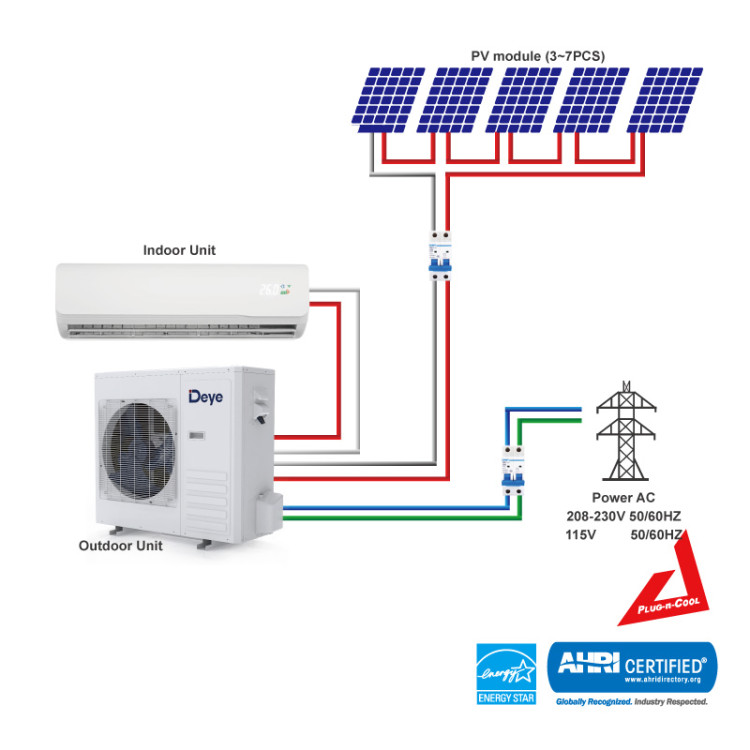

Solarker Deye Solar Air Conditioner Connecting Instructions
Hybrid ACDC Solar Features
DC Inverter Air Conditioner Features
Twin Rotay DC Inverter Compressor
High Efficiency, low noise level, stable working, longer life design. Powerful Cooling.
Low Noise DC Motor
DC fan motor, higher efficiency and accurate control
Golden Fin Evaporator and Condenser
Golden Fin is more resistant to oxidation and corrosion than ordinary blue fins of most
WiFi Remote Control
WIFI connection to the air conditioner and control anywhere and anytime through mobile APP
Wide Grid AC Voltage
With DC inverter compressor and the self-developed electronic control system, the air conditioner can be started and operated normally under a voltage between 90 and 250V in order to solve the problem of unstable voltage
Fault Code Indicate
When the machine operates with problems, display section will show the corresponding fault code to make after -sales service convenient and prompt.
Labyrinth PCB Cooling Radiator
Outdoor inverter electric control box uses labyrinth design, and proved by 2H rainstorm simulation test, it won’t get wet even in the typhoon day
5VA security controller Box
The highest level of fire-proof materials are adopted to protect the internal electronic control components, and prevent fire due to internal and external factors upon an accident.
WiFi Smart Control
WiFi and Bluetooth Remote Control
Through WiFi or Bluetooth you can connect your house air conditioner with your Android or Iphone mobile phone, and control anywhere of the devices. Owner can share devices to your family or workers and you can control multy split floor console separately or in group.
APP Power Meter Data
View real-time power generation data of solar panels and grid power consumption, daily, monthly, and annual historical power data through the APP, clearly to know how much energy saving everywhere and anytime
EVI Heating Technology & DC Inverter Vapor Injection Compressor
Deye EVI Low Temperature Heating Technology
Evaporator flash tank separate gas and liquid refrigerant, gaseous refrigerant enters the suction port of compressor and reaches the intermediate chamber of the compressor.
It increases compressor inside temperature and then increase compressor outlet exhaust temperature, so compressor enthalpy increase and efficiency improve.
DC Inverter + EEV Technology
The full DC inverter technology control the speed of compressor from 15HZ to 85HZ, adjusts the input power from minimum 200W to maximum 2500W according to the ambient temperature needs to achieve the first energy saving 20-30%.
EEV technology achieves precisely control of R32 refrigerant flow, achieving the second energy saving effect and precisely control the room temperature.
DC Inverter Vapor Injection Compressor
1/Under SEER60, COP reach 3.95
2/Heating Capacity increase 20-50% at -15°C
3/Two-stage throttling and compressing
4/Twin Rotary, stable and powerful
5/Lowest working ambient temp: -30°C
6/Maximize Air outlet temp 55°C at -20°C
Integrated Solar Mppt Controller
The solar PV panel can easily connected to the outdoor unit with MC4 connector.
The unit with both high EER cooling and high COP heating.
Deye -20 °F EVI Heat Pump solar air conditioner
When the outdoor temperature is 0 to -4°C, the heating capacity of the normal air conditioner or heat pump is about 60% of the nominal heating capacity (design heating capacity), and the actual heating capacity is about 40% of the nominal heating capacity when the temperature is -5°C to -6°C, In an environment below -7°C, the air conditioner has almost no heating due to the frequent defrosting of the outdoor unit of the air conditioner.
If you live in a cold area such as Eastern Europe, Northern Europe, Russia, Canada, etc., the temperature in winter is often lower than -5 ℃, then choosing Deye -20 °F EVI heating heat pump will be the most economical, the lowest cost, The best thermal solution. Combined with the Hybrid ACDC solar panel technology, you can get energy-efficient heating even during the day without using any grid power.
The Deye -20 °F EVI Hybrid ACDC heat pump air conditioner energy efficiency reach A++ in summer cooling, reach A+ in winter heating, which is the top level split type DC inverter appliances. Compared with the central water heat pump, it can be easily installed and also get rapid heating for the houses.
