USA R32 12K Hybrid ACDC mini Split Solar Air Conditioner Air Source Heat Pump

USA R32 12K Hybrid ACDC mini Split Solar Air Conditioner Air Source Heat Pump
USA R32 12K Hybrid ACDC mini Split Solar Air Conditioner Air Source Heat PumpUSA R32 12K Hybrid ACDC mini Split Solar Air Conditioner Air Source Heat PumpUSA R32 12K Hybrid ACDC mini Split Solar Air Conditioner Air Source Heat PumpUSA R32 12K Hybrid ACDC mini Split Solar Air Conditioner Air Source Heat Pump
CategoriesSolar Air Conditioner
BrandSolarker Hybrid ACDC Solar
Modelindoor: DGA3-ACDC1-12KR2(US) outdoor: DWA4-ACDC1-12KR2(US)
Rated VoltageAC:115V; DC:90V-380V
VOC of PV≤380V
ISC of PV≤14A
Rater FrequencyAC:60Hz
Cooling Capacity Range3000-12500Btu
Cooling Input Power950W
EER12.6
SEER20.8
SEER222.5
Heating Capacity Range3000-13000Btu
Heating Input Power980W
COP12.25
HSPF2 -5/
HSPF2 -49.7
Download
Update TimeApr 3,2025
Detail Information
Deye USA R32 12K Hybrid ACDC mini Split Solar Air Conditioner Air Source Heat Pump
DGA3-ACDC1-12KR2(US)    DWA4-ACDC1-12KR2(US)
Plug & Cool Vacuumed Connecting Pipe
1 Quickly connecting with stop valve

2 Brass material + copper pipe

3 Less gas leakage protection

4 No Vacuum needed when installation

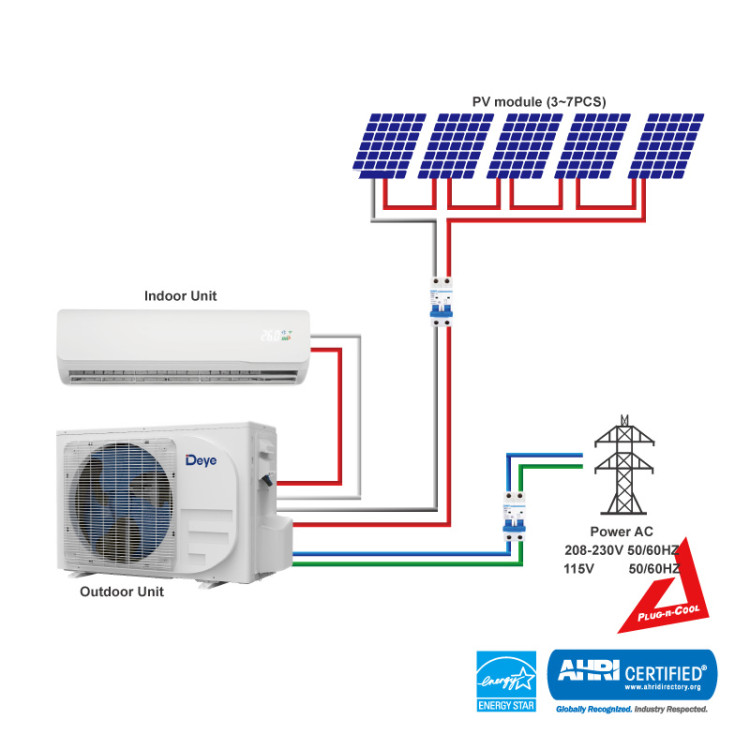

Solarker Deye Solar Air Conditioner Connecting Instructions
Solarker Deye Air Conditioner Connecting Instructions
Hybrid ACDC Solar Features
DC Inverter Air Conditioner Features
solar ac for USA
Twin Rotay DC Inverter Compressor
High Efficiency, low noise level, stable working, longer life design. Powerful Cooling.
solar power air conditioner hybrid
Low Noise DC Motor
DC fan motor, higher efficiency and accurate control
hybrid solar AC
Golden Fin Evaporator and Condenser
Golden Fin is more resistant to oxidation and corrosion than ordinary blue fins of most
hybrid air conditioner by solar panel
WiFi Remote Control
 WIFI connection to the air conditioner and control anywhere and anytime through mobile APP
USA air condiitoner with solar panel
Wide Grid AC Voltage
With DC inverter compressor and the self-developed electronic control system, the air conditioner can be started and operated normally under a voltage between 90 and 250V in order to solve the problem of unstable voltage
solar air conditioner installation in USA
Fault Code Indicate
When the machine operates with problems, display section will show the corresponding fault code to make after -sales service convenient and prompt.
split phase solar air conditioner
Labyrinth PCB Cooling Radiator
Outdoor inverter electric control box uses labyrinth design, and proved by 2H rainstorm simulation test, it won’t get wet even in the typhoon day
solar air conditioning controller USA standard
5VA security controller Box
The highest level of fire-proof materials are adopted to protect the internal electronic control components, and prevent fire due to internal and external factors upon an accident.
WiFi Smart Control
WiFi and Bluetooth Remote Control

Through WiFi or Bluetooth you can connect your house air conditioner with your Android or Iphone mobile phone, and control anywhere of the devices. Owner can share devices to your family or workers and you can control multy split floor console separately or in group.
APP Power Meter Data
View real-time power generation data of solar panels and grid power consumption, daily, monthly, and annual historical power data through the APP, clearly to know how much energy saving everywhere and anytime
EVI Heating Technology & DC Inverter Vapor Injection Compressor
Deye EVI Low Temperature Heating Technology
Evaporator flash tank separate gas and liquid refrigerant, gaseous refrigerant enters the suction port of compressor and reaches the intermediate chamber of the compressor.

It increases compressor inside temperature and then increase compressor outlet exhaust temperature, so compressor enthalpy increase and efficiency improve.

Solarker EVI air source heat pump -25C
DC Inverter +  EEV Technology
The full DC inverter technology control the speed of compressor from 15HZ to 85HZ, adjusts the input power from minimum 200W to maximum 2500W according to the ambient temperature needs to achieve the first energy saving 20-30%.

EEV technology achieves precisely control of R32 refrigerant flow, achieving the second energy saving effect and precisely control the room temperature.
Solarker DC inverter air conditioner
DC Inverter Vapor Injection Compressor
1/Under SEER60, COP reach 3.95
2/Heating Capacity increase 20-50% at -15°C
3/Two-stage throttling and compressing
4/Twin Rotary, stable and powerful
5/Lowest working ambient temp: -30°C
6/Maximize Air outlet temp 55°C at -20°C
solar air conditioner compressor
Integrated Solar Mppt Controller
The solar PV panel can easily connected to the outdoor unit with MC4 connector.

The unit with both high EER cooling and high COP heating.


Solarker EVI heat pump
Deye -20 °F EVI Heat Pump solar air conditioner
When the outdoor temperature is 0 to -4°C, the heating capacity of the normal air conditioner or heat pump is about 60% of the nominal heating capacity (design heating capacity), and the actual heating capacity is about 40% of the nominal heating capacity when the temperature is -5°C to -6°C, In an environment below -7°C, the air conditioner has almost no heating due to the frequent defrosting of the outdoor unit of the air conditioner.

If you live in a cold area such as Eastern Europe, Northern Europe, Russia, Canada, etc., the temperature in winter is often lower than -5 ℃, then choosing Deye -20 °F EVI heating heat pump will be the most economical, the lowest cost, The best thermal solution. Combined with the Hybrid ACDC solar panel technology, you can get energy-efficient heating even during the day without using any grid power.

The Deye -20 °F EVI Hybrid ACDC  heat pump air conditioner energy efficiency reach A++ in summer cooling, reach A+ in winter heating, which is the top level split type DC inverter appliances. Compared with the central water heat pump, it can be easily installed and also get rapid heating for the houses.
Low temperature air source heat pump solarker
